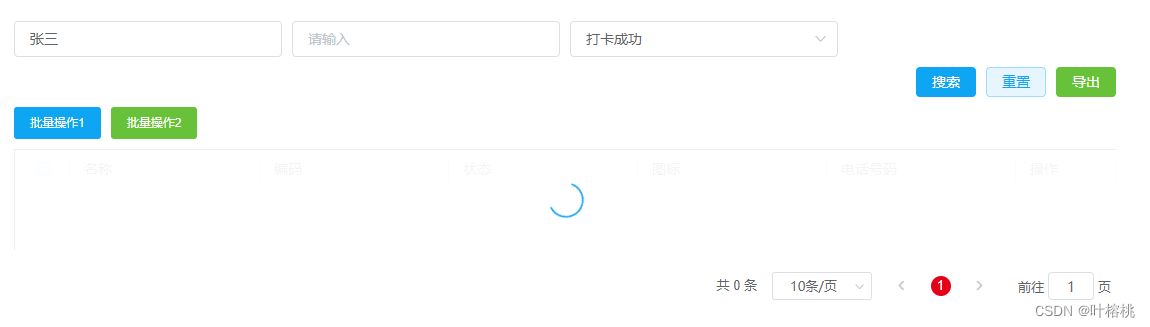

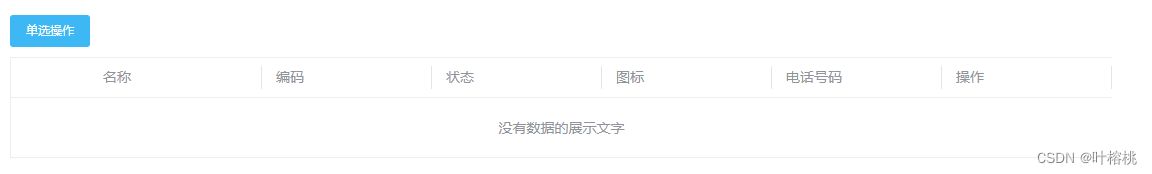

  • 五、加载中状态和空数据状态
  •  六、完整代码:
  • 总结

前言

很多中后台业务的系统中,表格是最高频的组件之一,其中一般包括搜索条件、表格展示、表格操作列、分页等。那么我们二次封装的这个表格组件就需要包含以下几个功能点:

1、数据自动获取和刷新

2、自定义列配置

3、分页功能

4、根据搜索条件进行搜索功能

5、加载中状态和空数据状态

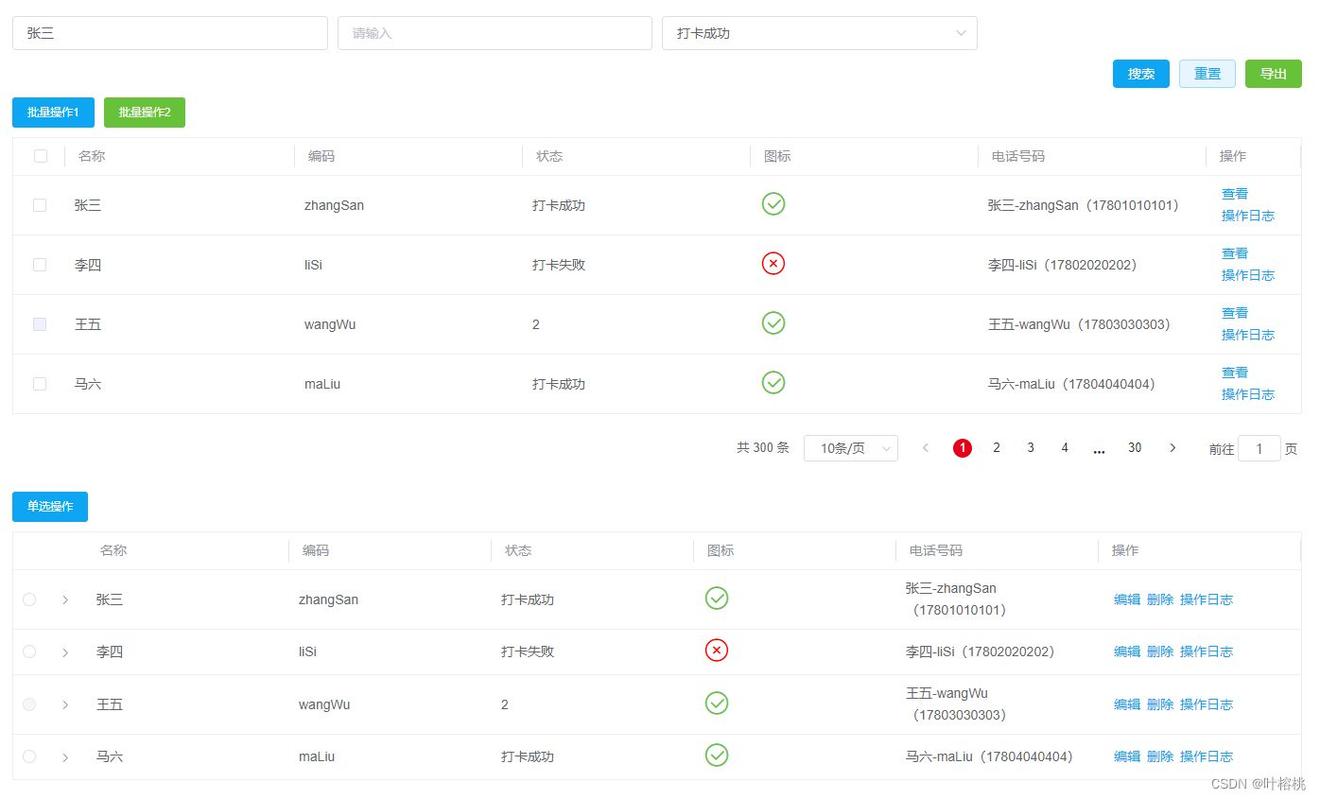

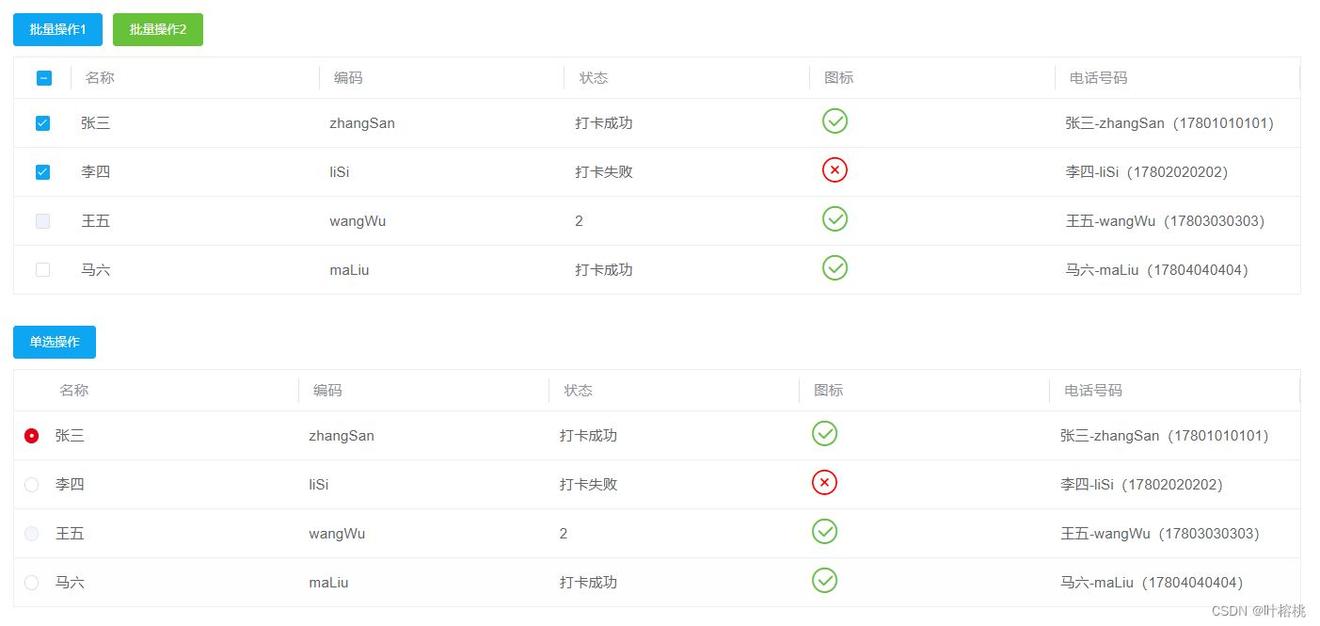

一、先上页面最终效果

二、创建目录yxt-table如下图

index.vue为父级页面

yxt-table.vue为表格组件

二、数据自动获取和刷新

因为表格的数据一般都比较简单,就是根据搜索条件,调用接口请求一个到列表,然后将列表数据一一展示到表格上,再对特定的列进行一些过滤转化等个性化操作。但是万变不离其宗,这个步骤基本每个表格都要进行一遍,所以考虑到通用性(其实是为了偷懒),将请求接口获取数据这一步放在组件里面实现。

created () {
    this.getData()
},
methods: {
    getData () {
        const fun = this.apiUrl
        fun().then(res => {
            this.tableData = res[this.otherConfig.list] || []
            this.tableTotal = res.pageInfo?.total ||
        })
    }
}

三、自定义列配置

组件接收一个数组作为自定义列

tableColumn: [
    { prop: 'name', label: '名称' },
    { prop: 'code', label: '编码' },
    { prop: 'status', label: '状态' }
]

 index.vue

<!-- index.vue -->
<template>
  <div>
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"></yxt-table>
  </div>
</template>

<!-- index.vue -->
<script>
import yxtTable from './yxt-table.vue'
import { yxtTableList } from 'https/yxtDemo.js'
export default {
    name: 'yxtDemoTable',
    components: {
        yxtTable
    },
    data () {
        return {
            yxtTableList,
            tableColumn: [
                { prop: 'name', label: '名称' },
                { prop: 'code', label: '编码' },
                { prop: 'status', label: '状态' }
            ]
        }
    }
}
</script>

 yxt-table.vue

<!-- yxt-table.vue -->
<template>
  <div>
    <el-table :data="tableData">
      <el-table-column v-for="item in tableColumn"
                       :key="item.prop"
                       :prop="item.prop"
                       :label="item.label"></el-table-column>
    </el-table>
  </div>
</template>

<!-- yxt-table.vue -->
<script>
export default {
    name: 'yxtTable',
    props: {
        apiUrl: { // 列表接口(必填)
            type: Function,
            required: true
        },
        tableColumn: { // 自定义列配置
            type: Array,
            default: () => []
        },
        otherConfig: { //
            type: Object,
            default: () => {
                return {
                    list: 'list'
                }
            }
        }
    },
    data () {
        return {
            tableData: []
        }
    },
    created () {
        this.getData()
    },
    methods: {
        getData () {
            const fun = this.apiUrl
            fun().then(res => {
                this.tableData = res[this.otherConfig.list] || []
                this.tableTotal = res.pageInfo?.total ||
            })
        }
    }
}
</script>

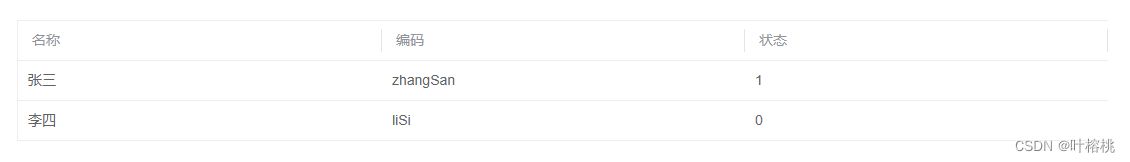

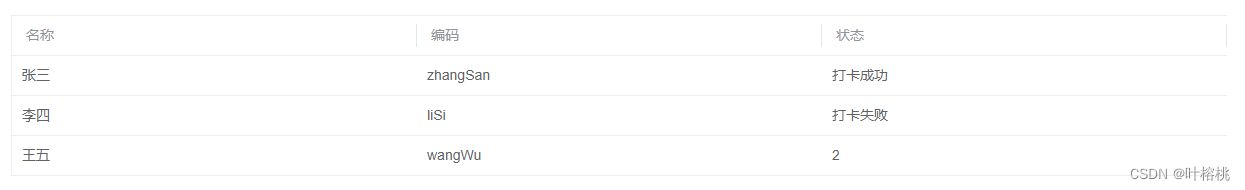

至此,一个表格可以实现了

1、otherConfig说明

由于我们的接口请求放在组件里面了,但是我们对接的接口可能由于业务的不同项目组的不同开发人员的不同,而导致接口返回的列表的字段名不同,这里通过传参的形式做一下兼容

2、上面这样只能实现简单的展示功能,还有些数据比如 状态1 需要转化为打卡成功,状态0 需要转化为打卡失败进行显示,这类需求可以通过filter进行转化

<!-- yxt-table.vue -->
      <el-table-column v-for="item in tableColumn"
                       :key="item.prop"
                       :prop="item.prop"
                       :label="item.label">
        <template v-slot:default="scope">
          <div v-if="item.dictCode">
            {{ scope.row[item.prop] | filterStatus(dict[item.dictCode]) }}
          </div>
          <div v-else>
            {{ scope.row[item.prop] }}
          </div>
        </template>
      </el-table-column>

    props: {
        dict: { // 全部字典
            type: Object,
            default: () => {}
        }
    },
    filters: {
        filterStatus (value, array, code = 'code', name = 'name') {
            if (!value && value !==) { // 要把0摘出来,一般0都是正常的数据,所以不能只用  !value
                return ''
            }
            const find = array.find(e => (e[code] === value.toString()) || (e[code] === +value)) // 字符型数值型都得匹配
            if (find) {
                return find[name]
            } else { // 没有匹配的就原样返回
                return value
            }
        }
    },
<!-- index.vue -->
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :dict="dict"></yxt-table>

    data () {
        return {
           tableColumn: [
                { prop: 'name', label: '名称' },
                { prop: 'code', label: '编码' },
                { prop: 'status', label: '状态', dictCode: 'status' }
            ],
            dict: {
                status: [
                    { code:, name: '打卡失败' },
                    { code:, name: '打卡成功' }
                ]
            }
        }
    }

这里dict设置为对象的原因是为了装进更多字典

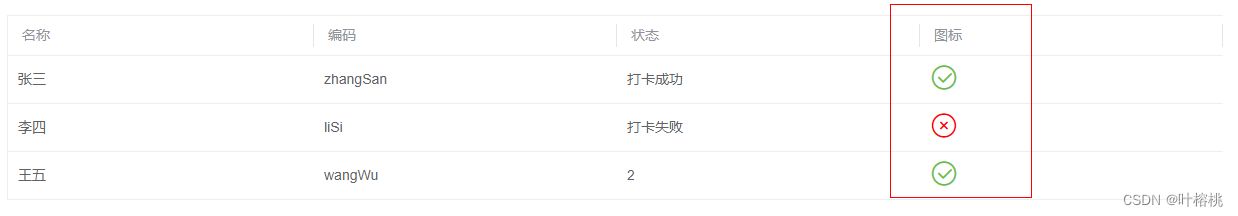

3、思考一下,如果要在表格中展示这样的自定义图标怎么办?

使用插槽slot,在tableColumn里面设置某行属性的slot为true,改造el-table-column如下:

<!-- yxt-table.vue -->
     <el-table-column v-for="(item, index) in tableColumn"
                       :key="index"
                       :prop="item.prop"
                       :label="item.label">
        <template v-if="item.slot"
                  v-slot:default="scope">
          <slot :name="item.prop"
                :row="scope.row"
                :index="scope.$index"></slot>
        </template>
        <template v-else v-slot:default="scope">
          <div v-if="item.dictCode">
            {{ scope.row[item.prop] | filterStatus(dict[item.dictCode]) }}
          </div>
          <div v-else>
            {{ scope.row[item.prop] }}
          </div>
        </template>
      </el-table-column>
<!-- index.vue -->
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :otherConfig="otherConfig"
               :dict="dict">
      <template v-slot:icon="{row, index}">
        <i :class="row.status ? 'el-icon-circle-check' : 'el-icon-circle-close'"></i>
      </template>
    </yxt-table>

    data () {
        return {
            tableColumn: [
                { prop: 'name', label: '名称' },
                { prop: 'code', label: '编码' },
                { prop: 'status', label: '状态', dictCode: 'status' },
                { prop: 'icon', label: '图标', slot: true }
            ]
        }
    }

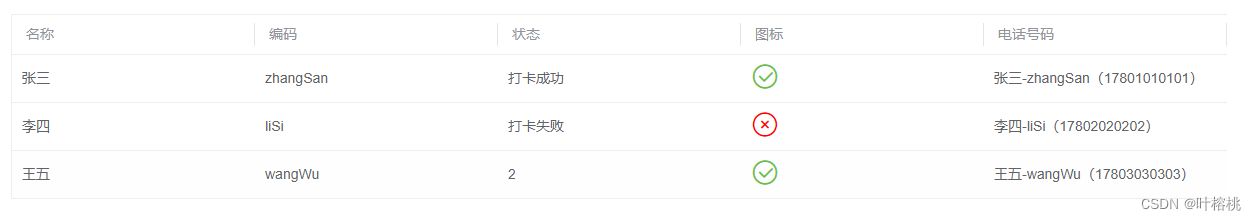

 4、在实际项目中,除了字典转化,还有一些比较定制化的展示需求,这个可以通过传入一个函数format进行计算,然后在这个方法里面将最后的计算结果return

<!-- yxt-table.vue -->
      <el-table-column v-for="(item, index) in tableColumn"
                       :key="index"
                       :prop="item.prop"
                       :label="item.label">
        <template v-if="item.slot"
                  v-slot:default="scope">
          <slot :name="item.prop"
                :row="scope.row"
                :index="scope.$index"></slot>
        </template>
        <template v-else v-slot:default="scope">
          <div v-if="item.dictCode">
            {{ scope.row[item.prop] | filterStatus(dict[item.dictCode]) }}
          </div>
          <div v-else-if="item.format">
            {{ item.format(scope.row) }}
          </div>
          <div v-else>
            {{ scope.row[item.prop] }}
          </div>
        </template>
      </el-table-column>
<!-- index.vue -->
    data () {
        return {
            tableColumn: [
                { prop: 'name', label: '名称' },
                { prop: 'code', label: '编码' },
                { prop: 'status', label: '状态', dictCode: 'status' },
                { prop: 'icon', label: '图标', slot: true },
                { prop: 'phone',
                    label: '电话号码',
                    format: (row) => {
                        return `${row.name}-${row.code}${row.phone})`
                    } }
            ]
        }
    }

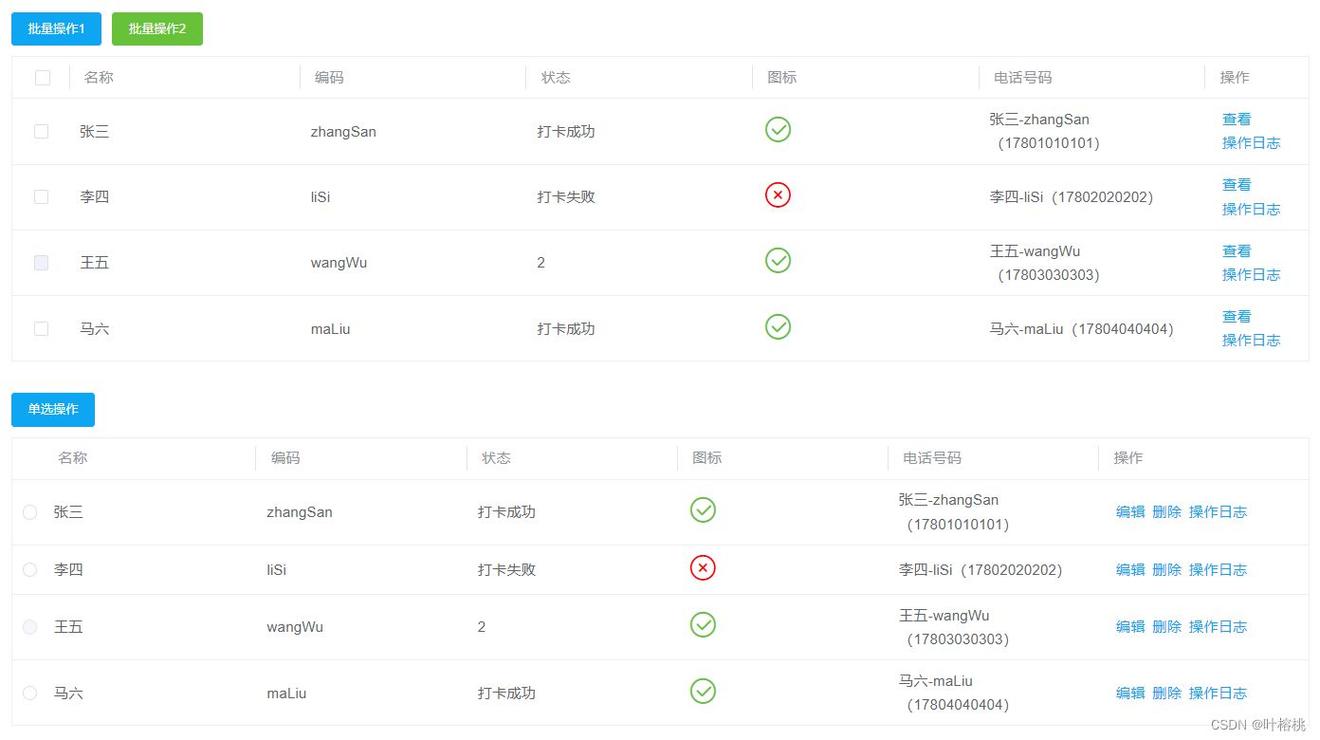

5、表格一般还有批量操作,所以需要多选和单选以及针对特定场景设置禁选

 yxt-table.vue

<!-- yxt-table.vue -->
<template>
  <div class="yxt-table">
    <!-- 批量操作按钮,因为每个需求不同,批量操作的功能也不同,所以这里只放一个插槽,不设置默认内容,所有按钮均在父级设置 -->
    <div class="multiple-operation">
      <slot name="multiple-operation"
            :selectionData="selectionData"></slot>
    </div>
    <!-- 页面主表格 -->
    <el-table :data="tableData"
              :row-key="rowKey"
              @selection-change="selectionChange">
      <!-- 可选框(多选) -->
      <el-table-column v-if="selection === 'multiple'"
                       type="selection"
                       align="center"
                       width=""
                       :reserve-selection="rowKey ? true : false"
                       :selectable="selectable"/>
      <!-- 可选框(单选) -->
      <el-table-column v-else-if="selection === 'single'"
                       align="center"
                       width="">
        <template v-slot:default="scope">
          <el-radio v-model="selectionRadio"
                    :label="scope.$index"
                    :disabled="selectable ? !selectable(scope.row) : false"
                    @change="selectionChangeSingle(scope.row)">
            {{ '' }}
          </el-radio>
        </template>
      </el-table-column>
      <el-table-column v-for="(item, index) in tableColumn"
                       :key="index"
                       :prop="item.prop"
                       :label="item.label">
        <template v-if="item.slot"
                  v-slot:default="scope">
          <slot :name="item.prop"
                :row="scope.row"
                :index="scope.$index"></slot>
        </template>
        <template v-else v-slot:default="scope">
          <div v-if="item.dictCode">
            {{ scope.row[item.prop] | filterStatus(dict[item.dictCode]) }}
          </div>
          <div v-else-if="item.format">
            {{ item.format(scope.row) }}
          </div>
          <div v-else>
            {{ scope.row[item.prop] }}
          </div>
        </template>
      </el-table-column>
    </el-table>
  </div>
</template>

<!-- yxt-table.vue -->
<script>
export default {
    name: 'yxtTable',
    props: {
        apiUrl: { // 列表接口(必填)
            type: Function,
            required: true
        },
        tableColumn: { // 自定义列配置
            type: Array,
            default: () => []
        },
        otherConfig: { // 其他配置
            type: Object,
            default: () => {
                return {
                    list: 'list' // 接口返回数据的列表字段的字段名(因为在组件里面调接口,可能不同业务不同项目组不同一个开发者返回给前端的参数名不一致,这里进行兼容)
                }
            }
        },
        dict: { // 全部字典
            type: [Array, Object],
            default: () => []
        },
        selection: { // 是否显示可选框(多选-multiple 、单选-single )
            type: String
        },
        selectable: { // 当前行是否可选择
            type: Function
        },
        rowKey: { // 表格唯一key(适用于分页多选表格,保留之前的选择,不传则为单页选择)
            type: [Number, String, Function],
            default: ''
        }
    },
    filters: {
        filterStatus (value, array, code = 'code', name = 'name') {
            if (!value && value !==) { // 要把0摘出来,一般0都是正常的数据,所以不能只用  !value
                return ''
            }
            const find = array.find(e => (e[code] === value.toString()) || (e[code] === +value)) // 字符型数值型都得匹配
            if (find) {
                return find[name]
            } else { // 没有匹配的就原样返回
                return value
            }
        }
    },
    data () {
        return {
            tableData: [],
            tableTotal:,
            selectionRadio: '',
            selectionData: []
        }
    },
    created () {
        this.getData()
    },
    methods: {
        getData () {
            const fun = this.apiUrl
            fun().then(res => {
                this.tableData = res[this.otherConfig.list] || []
                this.tableTotal = res.pageInfo?.total ||
            })
        },

        // 多选,选择行数据change
        selectionChange (selection) {
            this.selectionData = selection
        },

        // 单选,选择行数据change
        selectionChangeSingle (selection) {
            this.selectionData = [selection]
        }
    }
}
</script>
<style scoped lang="scss">
.yxt-table {
  margin:px;
  .multiple-operation {
    margin-bottom:px;
  }
}
</style>

 index.vue

<!-- index.vue -->
<template>
  <div>
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :otherConfig="otherConfig"
               :dict="dict"
               selection="multiple"
               :selectable="isSelectable">
      <!-- 图标插槽 -->
      <template v-slot:icon="{row, index}">
        <i :class="row.status ? 'el-icon-circle-check' : 'el-icon-circle-close'"></i>
      </template>
      <!-- 批量操作按钮插槽 -->
      <template v-slot:multiple-operation="{selectionData}">
        <el-button type="primary"
                   size="small"
                   @click="handleClick(selectionData)">批量操作1</el-button>
        <el-button type="success"
                   size="small"
                   @click="handleClick(selectionData)">批量操作2</el-button>
      </template>
    </yxt-table>
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :otherConfig="otherConfig"
               :dict="dict"
               selection="single"
               :selectable="isSelectable">
      <!-- 图标插槽 -->
      <template v-slot:icon="{row, index}">
        <i :class="row.status ? 'el-icon-circle-check' : 'el-icon-circle-close'"></i>
      </template>
      <!-- 批量操作按钮插槽 -->
      <template v-slot:multiple-operation="{selectionData}">
        <el-button type="primary"
                   size="small"
                   @click="handleClick(selectionData)">单选操作</el-button>
      </template>
    </yxt-table>
  </div>
</template>

<!-- index.vue -->
<script>
import yxtTable from './yxt-table.vue'
import { yxtTableList } from 'https/yxtDemo.js'
export default {
    name: 'yxtDemoTable',
    components: {
        yxtTable
    },
    data () {
        return {
            yxtTableList,
            tableColumn: [
                { prop: 'name', label: '名称' },
                { prop: 'code', label: '编码' },
                { prop: 'status', label: '状态', dictCode: 'status' },
                { prop: 'icon', label: '图标', slot: true },
                { prop: 'phone',
                    label: '电话号码',
                    format: (row) => {
                        return `${row.name}-${row.code}${row.phone})`
                    } }
            ],
            tableConfig: {
                stripe: 'stripe',
                border: 'border',
                height: '',
                maxHeight: '',
                showHeader: true
            },
            otherConfig: {
                list: 'tasks'
            },
            dict: {
                status: [
                    { code:, name: '打卡失败' },
                    { code:, name: '打卡成功' }
                ]
            }
        }
    },
    methods: {
        handleClick (selectionData) {
            console.log('', selectionData)
        },
        handleClick (selectionData) {
            console.log('', selectionData)
        },
        isSelectable (row) {
            return row.selectable !==
        }
    }
}
</script>
<style scoped lang="scss">
.el-icon-circle-check {
  font-size:px;
  color: #C23A;
}
.el-icon-circle-close {
  font-size:px;
  color: #F;
}
</style>

6、操作列

根据业务需求,可以在操作列设置几个默认按钮,通过setupConfig设置开关,如果有除了默认按钮之外的操作需求,再通过插槽slot进行插入

<!-- yxt-table.vue -->
      <!-- 操作列 -->
      <el-table-column v-if="setupConfig.width !=="
                       :fixed="setupConfig.fixed"
                       :width="setupConfig.width"
                       label="操作">
        <template v-slot:default="scope">
          <slot name="setup"
                :row="scope.row"
                :index="scope.$index"></slot>
          <!-- 查看 -->
          <el-button v-if="setupConfig.view"
                     type="text"
                     @click="setupEvents('view', scope.row)">查看</el-button>
          <!-- 编辑 -->
          <el-button v-if="setupConfig.edit"
                     type="text"
                     @click="setupEvents('edit', scope.row)">编辑</el-button>
          <!-- 删除 -->
          <el-button v-if="setupConfig.del"
                     type="text"
                     @click="setupEvents('del', scope.row)">删除</el-button>
          <!-- 操作日志 -->
          <el-button v-if="setupConfig.log"
                     type="text"
                     @click="setupEvents('log', scope.row)">操作日志</el-button>
        </template>
      </el-table-column>

    props: {
        setupConfig: {
            type: Object,
            default: () => {
                return {
                    width: 'auto'
                }
            }
        }
    },
    methods: {
        setupEvents (setupType, row) { // 操作列方法 查看/编辑/删除/操作日志
            this.$emit(setupType, row)
        }
    }

 index.vue做相应的处理,这里不贴代码了

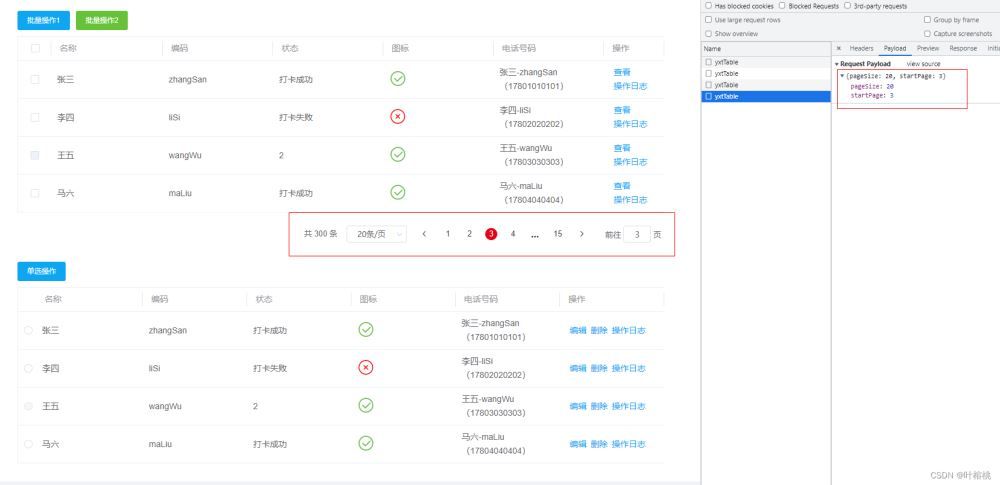

7、分页

pagination控制是否需要分页组件,如果不需要分页则设置为false。根据业务需求,可传入pageSizes控制条数下拉框的条数选项

<!-- yxt-table.vue -->
    <!-- 分页 -->
    <el-pagination v-if="pagination"
                   class="pagination tablePage"
                   :pager-count=""
                   :page-sizes="pageSizes || [, 20, 50, 100]"
                   :total="tableTotal ||"
                   :page-size="pageInfo.pageSize ||"
                   :current-page="pageInfo.startPage ||"
                   layout="total, sizes, prev, pager, next, jumper"
                   @size-change="sizeChange"
                   @current-change="pageChange"></el-pagination>



    props: {
        pagination: { // 是否需要分页,默认需要
            type: Boolean,
            default: true
        },
        pageSizes: {
            type: Array
        }
    },
    methods: {
        getData () {
            const fun = this.apiUrl
            const pageInfo = { // 分页信息
                pageSize: this.pageInfo.pageSize,
                startPage: this.pageInfo.startPage
            }
            let param = { // 其他的搜素条件

            }
            if (this.pagination) { // 如果需要分页,则传分页信息
                param = { ...param, ...pageInfo }
            }
            fun(param).then(res => {
                this.tableData = res[this.otherConfig.list] || []
                this.tableTotal = res.pageInfo?.total ||
            })
        },

        // 条数变化
        sizeChange (size) {
            this.pageInfo.startPage =
            this.pageInfo.pageSize = size
            this.getData()
        },

        // 页码变化
        pageChange (page) {
            this.pageInfo.startPage = page
            this.getData()
        }
    }

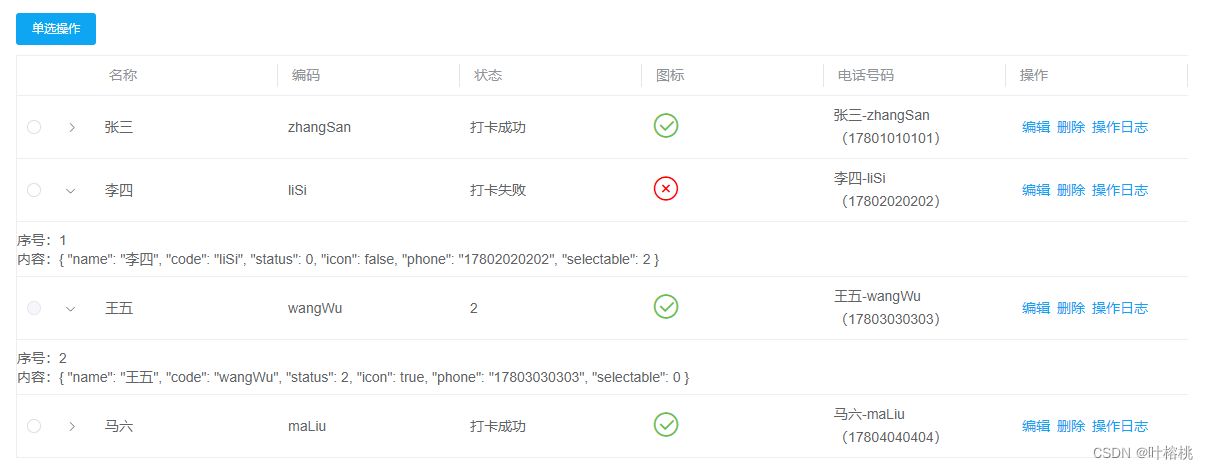

 8、el-table还有一个展开行功能expand,根据业务需求,也可以加进组件里

<!-- yxt-table.vue -->
      <!-- 展开行 -->
      <el-table-column v-if="expand"
                       type="expand">
        <template v-slot:default="scope">
          <slot name="expand"
                :row="scope.row"
                :index="scope.$index"></slot>
        </template>
      </el-table-column>

    props: {
        expand: { // 是否展开行
            type: Boolean,
            default: false
        }
    }
<!-- index.vue -->
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :expand="true">
      <template v-slot:expand="{row, index}">
        <div>
          <p>序号:{{index}}</p>
          <p>内容:{{row}}</p>
        </div>
      </template>
    </yxt-table>

四、根据搜索条件进行搜索更新表格数据

新增一个yxt-search.vue

<!-- yxt-search.vue -->
<template>
  <div class="yxt-search">
    <div v-for="(item,index) in searchConfig"
         :key="index"
         class="yxt-search-item">
      <el-input v-if="item.type==='input'"
                v-model="searchModel[item.key]"
                size="medium"
                :clearable="item.clearable || true"
                :placeholder="item.placeholder || '请输入'"
                :maxlength="item.maxlength"></el-input>
      <el-select v-if="item.type==='select'"
                 v-model="searchModel[item.key]"
                 size="medium"
                 style="width:%"
                 :clearable="item.clearable || true"
                 :filterable="item.filterable || true"
                 :disabled="item.disabled || false"
                 :multiple="item.multiple || false"
                 :allow-create="item.allowCreate"
                 :placeholder="item.placeholder || '请选择'">
        <el-option v-for="(selectItem, selectIndex) in item.selectList"
                   :key="selectIndex"
                   :label="selectItem[item.listLabel]"
                   :value="selectItem[item.listValue]"></el-option>
      </el-select>
    </div>
    <div v-if="searchConfig.length" class="yxt-search-button">
      <el-button size="medium" type="primary" @click="search">搜索</el-button>
      <el-button size="medium" type="primary" plain @click="reset">重置</el-button>
      <!-- 其他的按钮需求通过插槽传入 -->
      <slot name="searchBtn" :searchData="searchModel"></slot>
    </div>
  </div>
</template>

<!-- yxt-search.vue -->
<script>
export default {
    name: 'yxtSearch',
    props: {
        searchConfig: { // 搜索条件配置项
            type: Array,
            required: true,
            default () {
                return []
            }
        },
        searchModel: { // 搜索条件绑定值
            type: Object,
            required: true,
            default () {
                return {}
            }
        },
        searchReset: { // 搜索条件默认值重置值
            type: Object
        }
    },
    data () {
        return {
        }
    },
    methods: {
        search () {
            this.$emit('search', this.searchModel)
        },
        reset () {
            if (this.searchReset) { // 如果传入有默认值,则重置后为默认值
                Object.keys(this.searchModel).forEach((item) => {
                    this.searchModel[item] = this.searchReset[item]
                })
            } else {
                Object.keys(this.searchModel).forEach((item) => {
                    this.searchModel[item] = ''
                })
            }
        }
    }
}
</script>
<style scoped lang="scss">
.yxt-search {
  display: flex;
  flex-direction: row;
  flex-wrap: wrap;
  justify-content: flex-start;
  .yxt-search-item {
    flex:;
    margin: 10px 10px 0;
    width: calc((% - 30px) / 4);  // 这里的30px = (分布个数4-1)*间隙1px, 可以根据实际的分布个数和间隙区调整
    min-width: calc((% - 30px) / 4);
    max-width: calc((% - 30px) / 4);
    &:nth-child(n) { // 去除每行最后一个(第4n个)的margin-right
      margin-right:;
    }
  }
  .yxt-search-button {
    margin: 0 10px 0;
    width:%;
    text-align: right;
  }
}
</style>
<!-- yxt-table.vue -->
    <yxt-search :searchConfig="searchConfig"
                :searchModel="searchModel"
                :searchReset="searchReset"
                @search="getData()">
      <template v-slot:searchBtn="{searchData}">
        <!-- 其他的按钮需求通过插槽传入 -->
        <slot name="searchBtn" :searchData="searchData"></slot>
      </template>
    </yxt-search>

    props: {
        searchConfig: { // 搜索条件配置项
            type: Array,
            default () {
                return []
            }
        },
        searchReset: { // 搜索条件默认值重置值
            type: Object
        }
    },
    data () {
        return {
            searchModel: this.searchReset ? JSON.parse(JSON.stringify(this.searchReset)) : {}
        }
    },
    methods: {
        getData (startPage) {
            if (startPage) { // 如果传入值,则从改值的页码数开始
                this.pageInfo.startPage = startPage
            }
            let param = { // 其他的搜素条件
                ...this.searchModel
            }
            ...
        }
    }
<!-- index.vue -->
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :searchConfig="searchConfig"
               :searchReset="searchReset">
      <template v-slot:searchBtn="{searchData}">
        <el-button size="medium" type="success" @click="handleClickExport(searchData)">导出</el-button>
      </template>
    </yxt-table>

     data () {
        return {
            searchConfig: [
                { type: 'input', key: 'name' },
                { type: 'input', key: 'code' },
                { type: 'select',
                    key: 'status',
                    selectList: [
                        { code:, name: '打卡失败' },
                        { code:, name: '打卡成功' }
                    ],
                    listLabel: 'name',
                    listValue: 'code' }
            ],
            searchReset: {
                name: '张三',
                code: '',
                status:
            }
        }
    },
    methods: {
        handleClickExport (data) {
            console.log(data)
        }
    }

五、加载中状态和空数据状态

加载中:el-table 添加 v-loading="loading",getData里面,发送请求之前设置为true,获得数据后设置为false

空数据:通过插槽empty设置

 六、完整代码:

index.vue
<!-- index.vue -->
<template>
  <div>
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :otherConfig="otherConfig"
               :dict="dict"
               selection="multiple"
               :selectable="isSelectable"
               :setupConfig="setupConfig"
               :searchConfig="searchConfig"
               :searchReset="searchReset"
               @view="view"
               @log="log">
      <!-- 图标插槽 -->
      <template v-slot:icon="{row, index}">
        <i :class="row.status ? 'el-icon-circle-check' : 'el-icon-circle-close'"></i>
      </template>
      <!-- 批量操作按钮插槽 -->
      <template v-slot:multiple-operation="{selectionData}">
        <el-button type="primary"
                   size="small"
                   @click="handleClick(selectionData)">批量操作1</el-button>
        <el-button type="success"
                   size="small"
                   @click="handleClick(selectionData)">批量操作2</el-button>
      </template>
      <template v-slot:searchBtn="{searchData}">
        <el-button size="medium" type="success" @click="handleClickExport(searchData)">导出</el-button>
      </template>
    </yxt-table>
    <yxt-table :apiUrl="yxtTableList"
               :tableColumn="tableColumn"
               :otherConfig="otherConfig"
               :dict="dict"
               selection="single"
               :selectable="isSelectable"
               :setupConfig="setupConfig"
               :pagination="false"
               :expand="true"
               :emptyText="'没有数据的展示文字'">
      <!-- 图标插槽 -->
      <template v-slot:icon="{row, index}">
        <i :class="row.status ? 'el-icon-circle-check' : 'el-icon-circle-close'"></i>
      </template>
      <!-- 批量操作按钮插槽 -->
      <template v-slot:multiple-operation="{selectionData}">
        <el-button type="primary"
                   size="small"
                   @click="handleClick(selectionData)">单选操作</el-button>
      </template>
      <template v-slot:expand="{row, index}">
        <div>
          <p>序号:{{index}}</p>
          <p>内容:{{row}}</p>
        </div>
      </template>
    </yxt-table>
  </div>
</template>

<!-- index.vue -->
<script>
import yxtTable from './yxt-table.vue'
import { yxtTableList } from 'https/yxtDemo.js'
export default {
    name: 'yxtDemoTable',
    components: {
        yxtTable
    },
    data () {
        return {
            yxtTableList,
            tableColumn: [
                { prop: 'name', label: '名称' },
                { prop: 'code', label: '编码' },
                { prop: 'status', label: '状态', dictCode: 'status' },
                { prop: 'icon', label: '图标', slot: true },
                { prop: 'phone',
                    label: '电话号码',
                    format: (row) => {
                        return `${row.name}-${row.code}${row.phone})`
                    } }
            ],
            tableConfig: {
                stripe: 'stripe',
                border: 'border',
                height: '',
                maxHeight: '',
                showHeader: true
            },
            otherConfig: {
                list: 'tasks'
            },
            setupConfig: {
                width:,
                view: true,
                log: true
            },
            setupConfig: {
                edit: true,
                del: true,
                log: true
            },
            dict: {
                status: [
                    { code:, name: '打卡失败' },
                    { code:, name: '打卡成功' }
                ]
            },
            searchConfig: [
                { type: 'input', key: 'name' },
                { type: 'input', key: 'code' },
                { type: 'select',
                    key: 'status',
                    selectList: [
                        { code:, name: '打卡失败' },
                        { code:, name: '打卡成功' }
                    ],
                    listLabel: 'name',
                    listValue: 'code' }
            ],
            searchReset: {
                name: '张三',
                code: '',
                status:
            }
        }
    },
    methods: {
        handleClick (selectionData) {
            console.log('', selectionData)
        },
        handleClick (selectionData) {
            console.log('', selectionData)
        },
        handleClickExport (data) {
            console.log(data)
        },
        isSelectable (row) {
            return row.selectable !==
        },
        view (row) {
            console.log('view', row)
        },
        log (row) {
            console.log('log', row)
        }
    }
}
</script>
<style scoped lang="scss">
.el-icon-circle-check {
  font-size:px;
  color: #C23A;
}
.el-icon-circle-close {
  font-size:px;
  color: #F;
}
</style>
yxt-table.vue
<!-- yxt-table.vue -->
<template>
  <div class="yxt-table">
    <yxt-search :searchConfig="searchConfig"
                :searchModel="searchModel"
                :searchReset="searchReset"
                @search="getData()">
      <template v-slot:searchBtn="{searchData}">
        <!-- 其他的按钮需求通过插槽传入 -->
        <slot name="searchBtn" :searchData="searchData"></slot>
      </template>
    </yxt-search>
    <!-- 批量操作按钮,因为每个需求不同,批量操作的功能也不同,所以这里只放一个插槽,不设置默认内容,所有按钮均在父级设置 -->
    <div class="multiple-operation">
      <slot name="multiple-operation"
            :selectionData="selectionData"></slot>
    </div>
    <!-- 页面主表格 -->
    <el-table :data="tableData"
              :row-key="rowKey"
              v-loading="loading"
              @selection-change="selectionChange">
      <!-- 可选框(多选) -->
      <el-table-column v-if="selection === 'multiple'"
                       type="selection"
                       align="center"
                       width=""
                       :reserve-selection="rowKey ? true : false"
                       :selectable="selectable"/>
      <!-- 可选框(单选) -->
      <el-table-column v-else-if="selection === 'single'"
                       align="center"
                       width="">
        <template v-slot:default="scope">
          <el-radio v-model="selectionRadio"
                    :label="scope.$index"
                    :disabled="selectable ? !selectable(scope.row) : false"
                    @change="selectionChangeSingle(scope.row)">
            {{ '' }}
          </el-radio>
        </template>
      </el-table-column>
      <!-- 展开行 -->
      <el-table-column v-if="expand"
                       type="expand">
        <template v-slot:default="scope">
          <slot name="expand"
                :row="scope.row"
                :index="scope.$index"></slot>
        </template>
      </el-table-column>
      <el-table-column v-for="(item, index) in tableColumn"
                       :key="index"
                       :prop="item.prop"
                       :label="item.label">
        <template v-if="item.slot"
                  v-slot:default="scope">
          <slot :name="item.prop"
                :row="scope.row"
                :index="scope.$index"></slot>
        </template>
        <template v-else v-slot:default="scope">
          <div v-if="item.dictCode">
            {{ scope.row[item.prop] | filterStatus(dict[item.dictCode]) }}
          </div>
          <div v-else-if="item.format">
            {{ item.format(scope.row) }}
          </div>
          <div v-else>
            {{ scope.row[item.prop] }}
          </div>
        </template>
      </el-table-column>
      <!-- 操作列 -->
      <el-table-column v-if="setupConfig.width !=="
                       :fixed="setupConfig.fixed"
                       :width="setupConfig.width"
                       label="操作">
        <template v-slot:default="scope">
          <slot name="setup"
                :row="scope.row"
                :index="scope.$index"></slot>
          <!-- 查看 -->
          <el-button v-if="setupConfig.view"
                     type="text"
                     @click="setupEvents('view', scope.row)">查看</el-button>
          <!-- 编辑 -->
          <el-button v-if="setupConfig.edit"
                     type="text"
                     @click="setupEvents('edit', scope.row)">编辑</el-button>
          <!-- 删除 -->
          <el-button v-if="setupConfig.del"
                     type="text"
                     @click="setupEvents('del', scope.row)">删除</el-button>
          <!-- 操作日志 -->
          <el-button v-if="setupConfig.log"
                     type="text"
                     @click="setupEvents('log', scope.row)">操作日志</el-button>
        </template>
      </el-table-column>
      <!-- 空状态 -->
      <template slot="empty">
        <p>{{ emptyText }}</p>
      </template>
    </el-table>
    <!-- 分页 -->
    <el-pagination v-if="pagination"
                   class="pagination tablePage"
                   :pager-count=""
                   :page-sizes="pageSizes || [, 20, 50, 100]"
                   :total="tableTotal ||"
                   :page-size="pageInfo.pageSize ||"
                   :current-page="pageInfo.startPage ||"
                   layout="total, sizes, prev, pager, next, jumper"
                   @size-change="sizeChange"
                   @current-change="pageChange"></el-pagination>
  </div>
</template>

<!-- yxt-table.vue -->
<script>
import yxtSearch from './yxt-search'
export default {
    name: 'yxtTable',
    components: {
        yxtSearch
    },
    props: {
        apiUrl: { // 列表接口(必填)
            type: Function,
            required: true
        },
        tableColumn: { // 自定义列配置
            type: Array,
            default: () => []
        },
        otherConfig: { // 其他配置
            type: Object,
            default: () => {
                return {
                    list: 'list' // 接口返回数据的列表字段的字段名(因为在组件里面调接口,可能不同业务不同项目组不同一个开发者返回给前端的参数名不一致,这里进行兼容)
                }
            }
        },
        dict: { // 全部字典
            type: [Array, Object],
            default: () => []
        },
        selection: { // 是否显示可选框(多选-multiple 、单选-single )
            type: String
        },
        selectable: { // 当前行是否可选择
            type: Function
        },
        rowKey: { // 表格唯一key(适用于分页多选表格,保留之前的选择,不传则为单页选择)
            type: [Number, String, Function],
            default: ''
        },
        setupConfig: {
            type: Object,
            default: () => {
                return {
                    width: 'auto'
                }
            }
        },
        pagination: { // 是否需要分页,默认需要
            type: Boolean,
            default: true
        },
        pageSizes: { // 分页的下拉框选项
            type: Array
        },
        expand: { // 是否展开行
            type: Boolean,
            default: false
        },
        searchConfig: { // 搜索条件配置项
            type: Array,
            default () {
                return []
            }
        },
        searchReset: { // 搜索条件默认值重置值
            type: Object
        },
        emptyText: {
            type: String
        }
    },
    filters: {
        filterStatus (value, array, code = 'code', name = 'name') {
            if (!value && value !==) { // 要把0摘出来,一般0都是正常的数据,所以不能只用  !value
                return ''
            }
            const find = array.find(e => (e[code] === value.toString()) || (e[code] === +value)) // 字符型数值型都得匹配
            if (find) {
                return find[name]
            } else { // 没有匹配的就原样返回
                return value
            }
        }
    },
    data () {
        return {
            loading: true,
            tableData: [],
            tableTotal:,
            pageInfo: {
                pageSize:,
                startPage:
            },
            selectionRadio: '',
            selectionData: [],
            searchModel: this.searchReset ? JSON.parse(JSON.stringify(this.searchReset)) : {}
        }
    },
    created () {
        this.getData()
    },
    methods: {
        getData (startPage) {
            if (startPage) { // 如果传入值,则从改值的页码数开始
                this.pageInfo.startPage = startPage
            }
            this.loading = true
            const fun = this.apiUrl
            const pageInfo = { // 分页信息
                pageSize: this.pageInfo.pageSize,
                startPage: this.pageInfo.startPage
            }
            let param = { // 其他的搜素条件
                ...this.searchModel
            }
            if (this.pagination) { // 如果需要分页,则传分页信息
                param = { ...param, ...pageInfo }
            }
            fun(param).then(res => {
                setTimeout(() => {
                    this.tableData = res[this.otherConfig.list] || []
                    this.tableTotal = res.pageInfo?.total ||
                    this.loading = false
                },)
            })
        },

        // 多选,选择行数据change
        selectionChange (selection) {
            this.selectionData = selection
        },

        // 单选,选择行数据change
        selectionChangeSingle (selection) {
            this.selectionData = [selection]
        },

        // 操作列方法 查看/编辑/删除/操作日志
        setupEvents (setupType, row) {
            this.$emit(setupType, row)
        },

        // 条数变化
        sizeChange (size) {
            this.pageInfo.startPage =
            this.pageInfo.pageSize = size
            this.getData()
        },

        // 页码变化
        pageChange (page) {
            this.pageInfo.startPage = page
            this.getData()
        }
    }
}
</script>
<style scoped lang="scss">
.yxt-table {
  margin:px;
  .multiple-operation {
    margin-bottom:px;
  }
}
</style>
yxt-search.vue
<!-- yxt-search.vue -->
<template>
  <div class="yxt-search">
    <div v-for="(item,index) in searchConfig"
         :key="index"
         class="yxt-search-item">
      <el-input v-if="item.type==='input'"
                v-model="searchModel[item.key]"
                size="medium"
                :clearable="item.clearable || true"
                :placeholder="item.placeholder || '请输入'"
                :maxlength="item.maxlength"></el-input>
      <el-select v-if="item.type==='select'"
                 v-model="searchModel[item.key]"
                 size="medium"
                 style="width:%"
                 :clearable="item.clearable || true"
                 :filterable="item.filterable || true"
                 :disabled="item.disabled || false"
                 :multiple="item.multiple || false"
                 :allow-create="item.allowCreate"
                 :placeholder="item.placeholder || '请选择'">
        <el-option v-for="(selectItem, selectIndex) in item.selectList"
                   :key="selectIndex"
                   :label="selectItem[item.listLabel]"
                   :value="selectItem[item.listValue]"></el-option>
      </el-select>
    </div>
    <div v-if="searchConfig.length" class="yxt-search-button">
      <el-button size="medium" type="primary" @click="search">搜索</el-button>
      <el-button size="medium" type="primary" plain @click="reset">重置</el-button>
      <!-- 其他的按钮需求通过插槽传入 -->
      <slot name="searchBtn" :searchData="searchModel"></slot>
    </div>
  </div>
</template>

<!-- yxt-search.vue -->
<script>
export default {
    name: 'yxtSearch',
    props: {
        searchConfig: { // 搜索条件配置项
            type: Array,
            required: true,
            default () {
                return []
            }
        },
        searchModel: { // 搜索条件绑定值
            type: Object,
            required: true,
            default () {
                return {}
            }
        },
        searchReset: { // 搜索条件默认值重置值
            type: Object
        }
    },
    data () {
        return {
        }
    },
    methods: {
        search () {
            this.$emit('search', this.searchModel)
        },
        reset () {
            if (this.searchReset) { // 如果传入有默认值,则重置后为默认值
                Object.keys(this.searchModel).forEach((item) => {
                    this.searchModel[item] = this.searchReset[item]
                })
            } else {
                Object.keys(this.searchModel).forEach((item) => {
                    this.searchModel[item] = ''
                })
            }
        }
    }
}
</script>
<style scoped lang="scss">
.yxt-search {
  display: flex;
  flex-direction: row;
  flex-wrap: wrap;
  justify-content: flex-start;
  .yxt-search-item {
    flex:;
    margin: 10px 10px 0;
    width: calc((% - 30px) / 4);  // 这里的30px = (分布个数4-1)*间隙1px, 可以根据实际的分布个数和间隙区调整
    min-width: calc((% - 30px) / 4);
    max-width: calc((% - 30px) / 4);
    &:nth-child(n) { // 去除每行最后一个(第4n个)的margin-right
      margin-right:;
    }
  }
  .yxt-search-button {
    margin: 0 10px 0;
    width:%;
    text-align: right;
  }
}
</style>

yxtTable.json

{
  "retCode": "",
  "retMsg": "success",
  "pageInfo": {
    "total":
  },
  "tasks": [
    { "name": "张三",
      "code": "zhangSan",
      "status":,
      "icon": true,
      "phone":  "",
      "selectable":
    },
    { "name": "李四",
      "code": "liSi",
      "status":,
      "icon": false,
      "phone": "",
      "selectable":
    },
    { "name": "王五",
      "code": "wangWu",
      "status":,
      "icon": true,
      "phone": "",
      "selectable":
    },
    { "name": "马六",
      "code": "maLiu",
      "status":,
      "icon": false,
      "phone": "",
      "selectable":
    }
  ]
}

最后效果
